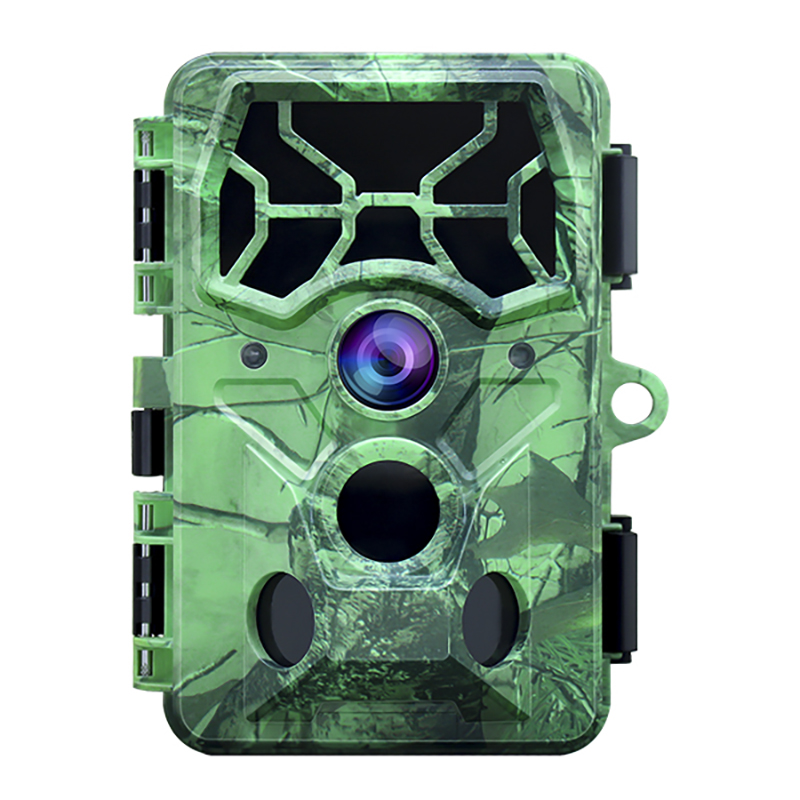

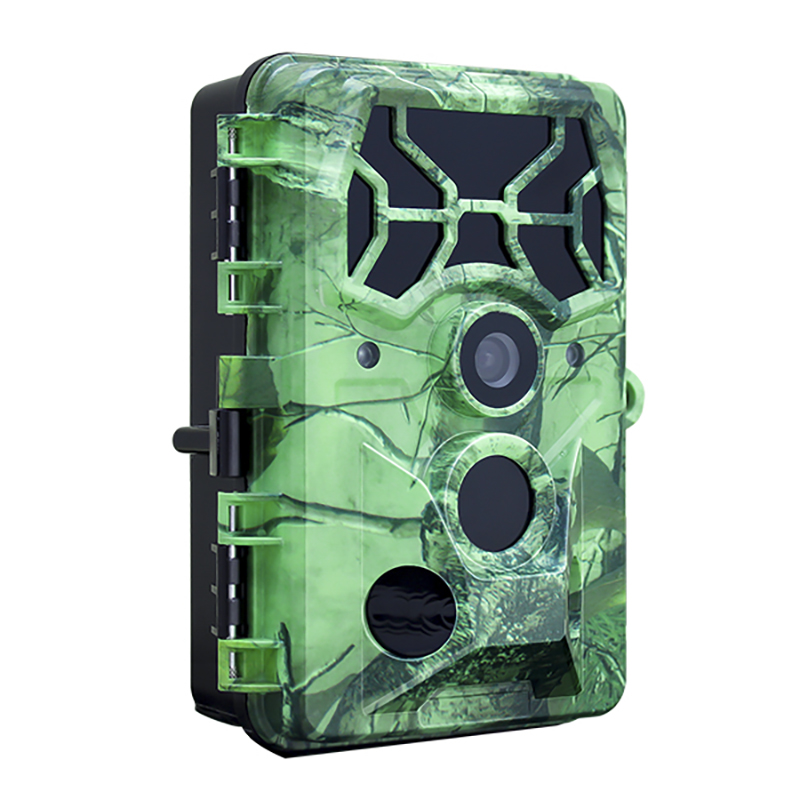

Camera trap system
Description:
A camera trap system is a remote surveillance tool used for wildlife monitoring, employing motion sensors and cameras triggered by animal movement to capture images or videos. These systems are vital for non-invasive wildlife research, providing valuable insights into animal behavior and population dynamics.
Specifications

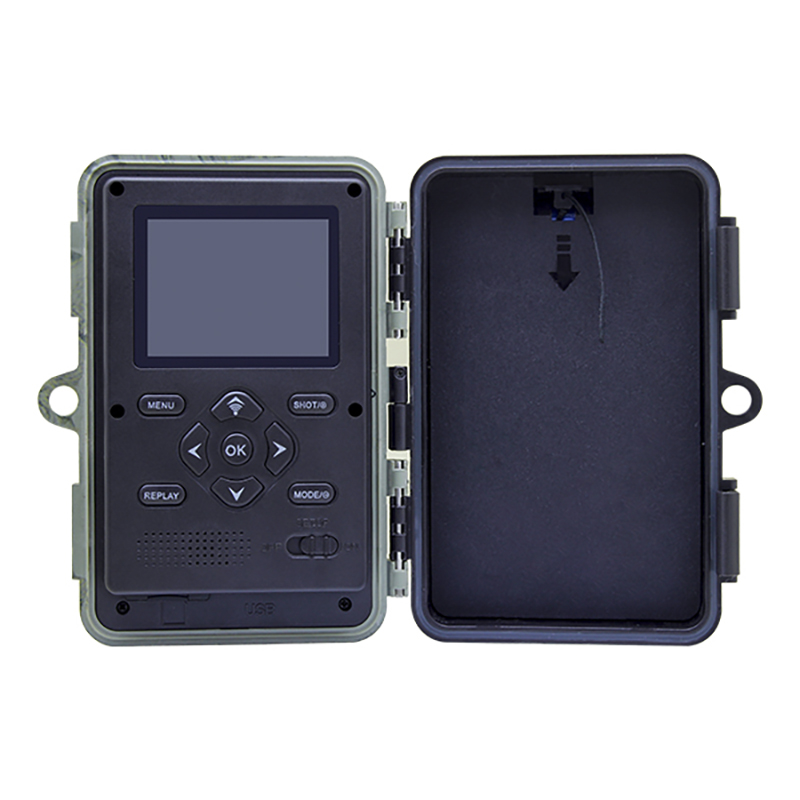

| Display Screen | 2.0″ Color viewer TFT LCD |
| Image Sensor | 1/3” 8 Mega Pixels CMOS Sensor |
| Angle | Main PIR:60°, Side PIRs = 120° |
| Lens | F=4.3MM ; FOV=80° ; Auto IR-Cut-Remove (at night) |
| IR-Flash | Yes（can choose 50% or 100%) / No |
| Infrared Cut Filter | YES |
| IR-LED | 40x 850nm for 30ft-40ft |
| Memory | SD-card (not included)up to 256GB |
| Trigger Speed | 0.3 sec and Pre-boot : 0.2 Sec |
| Image Resolution | 30MP/24MP/20MP/16MP/12MP/8MP (Default) 5MP/3MP/2MP |
| Video Size | 4K(3840×2160 @ 30fps), 2K(2560×1440 @ 30fps), 1080P, 720P, MP4(H.264) |
| Audio Recording | Available |
WIFI | 2.4-2.5 GHz 802.11 b/g/n High speed wifi upto 150MBPS. WIFI App function to take photos, videos, real-time monitor preview, download and delete files, change menu settings, battery and memory capacity |
| Main Functions | Photo, Video, burst shooting, password, Camera Name, Wifi Name, Timer, Time lapse, battery indication and auto power off |
| Speaker | Yes, on/off , 80-120dB SPL |
| Image Overlay | Moon Phase, Temperature, Time and Date |
| Bluetooth | YES |
| Power Supply | AA Batteries or 12V DC (not included) or solar panel or 12V power bank or storage battery |
| Stand-by Current | < 0.3mA |
| Stand-by Time | Up to 6 Months(8*AA) |
| Operation Temperature | -30°C – 60°C (Storage temperature: -40°C – 70°C) |
| Waterproof spec | IP66 |
| Size | 136x101x76 |
| Security authentication | CE FCC RoHS |
Display Screen | 2.0″ Color viewer TFT LCD |
Image Sensor | 1/3” 8 Mega Pixels CMOS Sensor |
Angle | Main PIR:60°, Side PIRs = 120° |
Lens | F=4.3MM ; FOV=80° ; Auto IR-Cut-Remove (at night) |
IR-Flash | Yes（can choose 50% or 100%) / No |
Infrared Cut Filter | YES |
IR-LED | 40x 850nm for 30ft-40ft |
Memory | SD-card (not included)up to 256GB |
Trigger Speed | 0.3 sec and Pre-boot : 0.2 Sec |
Image Resolution | 30MP/24MP/20MP/16MP/12MP/8MP (Default) 5MP/3MP/2MP |
Video Size | 4K(3840×2160 @ 30fps), 2K(2560×1440 @ 30fps), 1080P, 720P, MP4(H.264) |
Audio Recording | Available |
WIFI | 2.4-2.5 GHz 802.11 b/g/n High speed wifi upto 150MBPS. WIFI App function to take photos, videos, real-time monitor preview, download and delete files, change menu settings, battery and memory capacity |
Main Functions | Photo, Video, burst shooting, password, Camera Name, Wifi Name, Timer, Time lapse, battery indication and auto power off |
Speaker | Yes, on/off , 80-120dB SPL |
Image Overlay | Moon Phase, Temperature, Time and Date |
Bluetooth | YES |
Power Supply | AA Batteries or 12V DC (not included) or solar panel or 12V power bank or storage battery |
Stand-by Current | < 0.3mA |
Stand-by Time | Up to 6 Months(8*AA) |
Operation Temperature | -30°C – 60°C (Storage temperature: -40°C – 70°C) |
Operation Humidity | 5% – 90% |
Waterproof spec | IP66 |
Size | 136x101x76 |
Security authentication | CE FCC RoHS |
