Solar Home Light Kit
Description:
A solar home light is a compact, eco-friendly lighting solution that harnesses solar energy to illuminate indoor spaces, reducing reliance on conventional electricity and lowering energy costs. It consists of solar panels, a battery storage unit, and LED bulbs, offering sustainable lighting for off-grid or environmentally conscious homes.
Features:
- 12V 40W Solar Panel
- 12V 20AH Solar Tubular Battery
- 6W x 1 No. LED Light of 600 Lumens
- 3W x 3 Nos. LED Light of 300 Lumens
- Lights with elegant design with mini tubelight look
- One 6W Light enough for a 15’ x 15’ room
- One 6W Light enough for a 11’ x 11’ room
- No-Glare diffuser to prevent eye strain
- Power distribution box
- 35 Mtrs of 2 Core Cable for Installation.
Specifications:
- Power Input : 12v 40W Solar panel with wall mount kit.
- Bulk, Float & Trickle Charging with Indication, Low Battery Protection with Indication, Over Voltage Protection, Over Load Protection, Short Circuit and Reverse Polarity Protection.
- BACKUP TIME : 5 Hours / Day
- 3 Days with 100% load when battery is full charged at 5 hrs usage per day.
- 6 Days with Zero sunlight on 50% load when battery is fully charged at 5Hrs usage per day

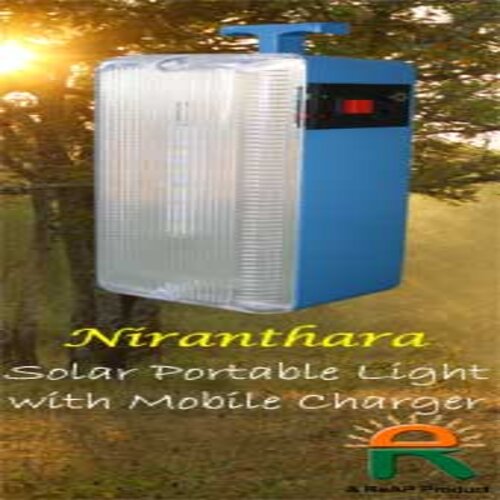

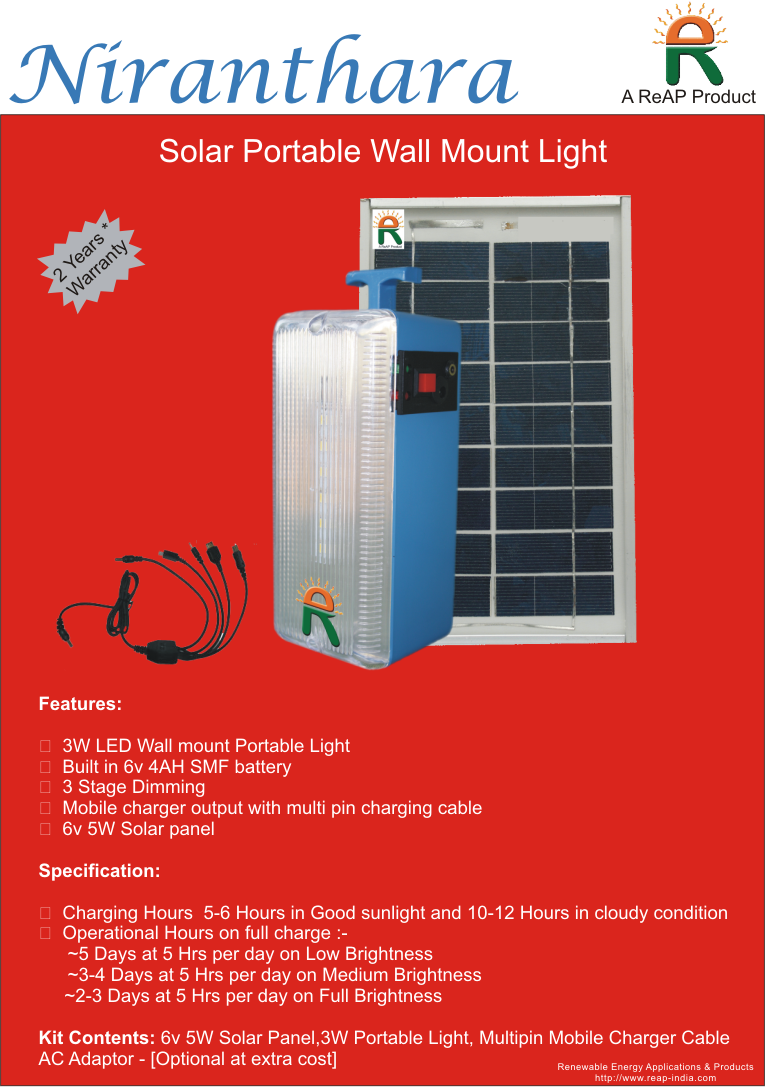

Solar Portable Kit - Niranthara
Description:
Solar Uni-Directional Wall Mount Lantern with 270 Deg light spread, Brighter than any 360 Deg Lanterns in the same class.
Features:
- 3W LED Wall Mount Portable Light
- 300 Lumens output, Brighter than 7W CFL.
- Built-In 6v 4AH SMF Battery
- 3 Stage Dimming
- Mobile charger output with multi pin charging cable
- 6v 5W Solar panel and AC Adaptor
Functions:
- Charging Hours : 5-6 Hrs in Good Sunlight and 10-12 Hrs in Cloudy Condition.
- 25 Hours on Stage 1 Dimming
- 17 Hours on Stage 2 Dimming
- 10 Hours on full brightness
Charge cotroller Features:
- 6v 1A Charge Controller with built in 3W LED Driver
- Input source : 6v Solar Panel / 9V 500mA DC Adaptorg
- Linear Charging
- 5v Output for Mobile Charging Applications
- Low Battery and Battery Charging Indication.
- Output Off when Charging in Process.
Protections :
- Low Battery, Over Charge, Over Load, Panel Reverse Connection, Battery Reverse Protection.
Kit contents:
- 6v 5W Solar Panel with 9 mtr cable
- 25 Hours on Stage 1 Dimming
- 17 Hours on Stage 2 Dimming
- 10 Hours on full brightness
Charge cotroller specification:
- Input Voltage : 9v – 12v
- Maximum I/P Current : 1A
- Low Battery Cutoff : 5.4V
- 5v Output for Mobile Charging Applications
- Charging Cutoff : 7.2V
- Battery Re-Connect : 6.8V
- Idle Current : 0.5mA [~3mw]
- 3 Step Charging : Bulk, Float, Trickle
Driver Features:
- 1W LED x 3 in Series or 0.5W LED x 6 [3LED’s in Series x 2 Strings in parallel]
- 3 Stage Dimming
- Max. Drive Current : 350mA
- Min. Drive Current : 50mA
